With the advancement of agriculture, existing medium-sized tractors are no longer sufficient to meet the operational demands of modern farms. Consequently, we have developed the 3Y series of tractors. This series features a net weight of up to 4 tons, offering significantly enhanced traction and lifting capabilities compared to previous medium-sized models. Furthermore, these tractors are affordably priced and offer excellent value for money, making them ideally suited to meet the operational needs of family-run farms.

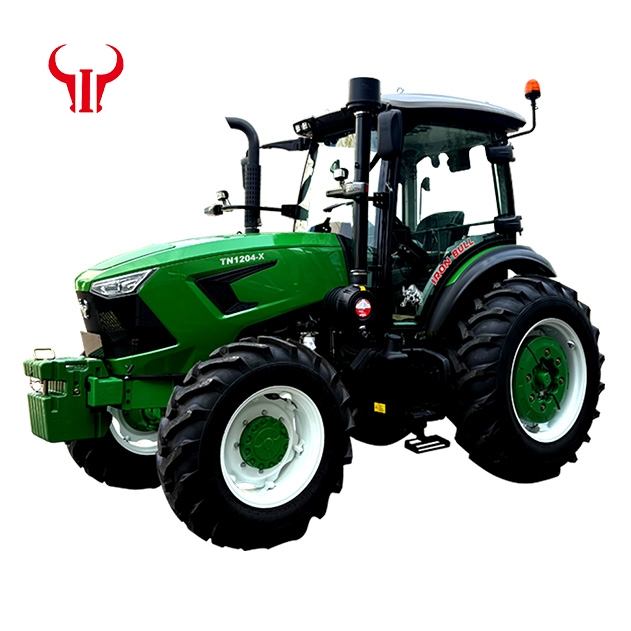

REAL CASE OF TS SERIES TRACTOR --TN1004-X
With the advancement of agriculture, existing medium-sized tractors are no longer sufficient to meet the operational demands of modern farms. Consequently, we have developed the 3Y series of tractors. This series features a net weight of up to 4 tons, offering significantly enhanced traction and lifting capabilities compared to previous medium-sized models. Furthermore, these tractors are affordably priced and offer excellent value for money, making them ideally suited to meet the operational needs of family-run farms.
Technical Overview & Core Parameters
|
TRACTOR MODEL |
TN1004-X |
TN1204-X |
|
HORSE POWER |
100 HP |
120 HP |
|
WHEEL DRIVE |
4x4 |
|
|
ENGINE BRAND |
YUCHAI |
|
|
ENGINE EMISSION |
Ⅲ |
|
|
ROPS |
Air Condition Cabin |
|
|
DIMENSION |
4600 x 2100 x 2950 mm |
|
|
GROUND CLEARANCE |
400 mm |
|
|
WEIGHT |
4345 kgs |
|
|
WHEEL TREAD |
1300-1950 mm |
|
|
WHEEL BASE |
2250 mm |
|
|
GEAR SHIFT |
12+12 |
|
|
REAR SUSPENSION |
Ⅱ Plus Type |
|
|
TIRE |
12.4-24/16.9-34 Inch |
|
|
PTO |
6/8 Splines, 540/1000 rpm |
|
Technical Overview & Core Parameters
This tractor has many gears 12F+12R shuttle shift, each corresponding to a different driving speed and traction for using.

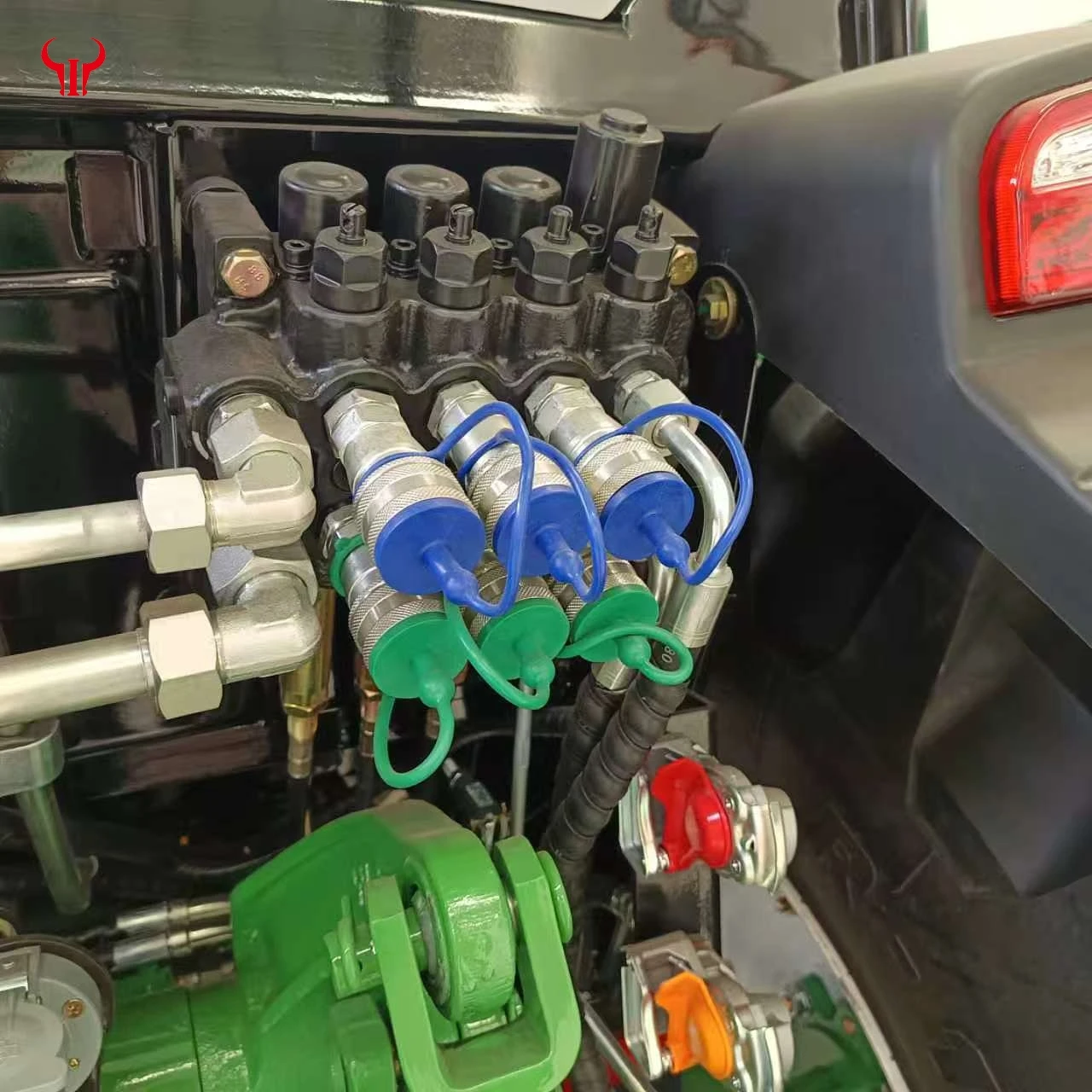

Equipped with three sets of hydraulic outlets, it meets the requirements for attaching various farm implements. The three-point linkage features power lift, power lower, and float control functions, allowing users to select different operating modes based on specific tillage conditions.

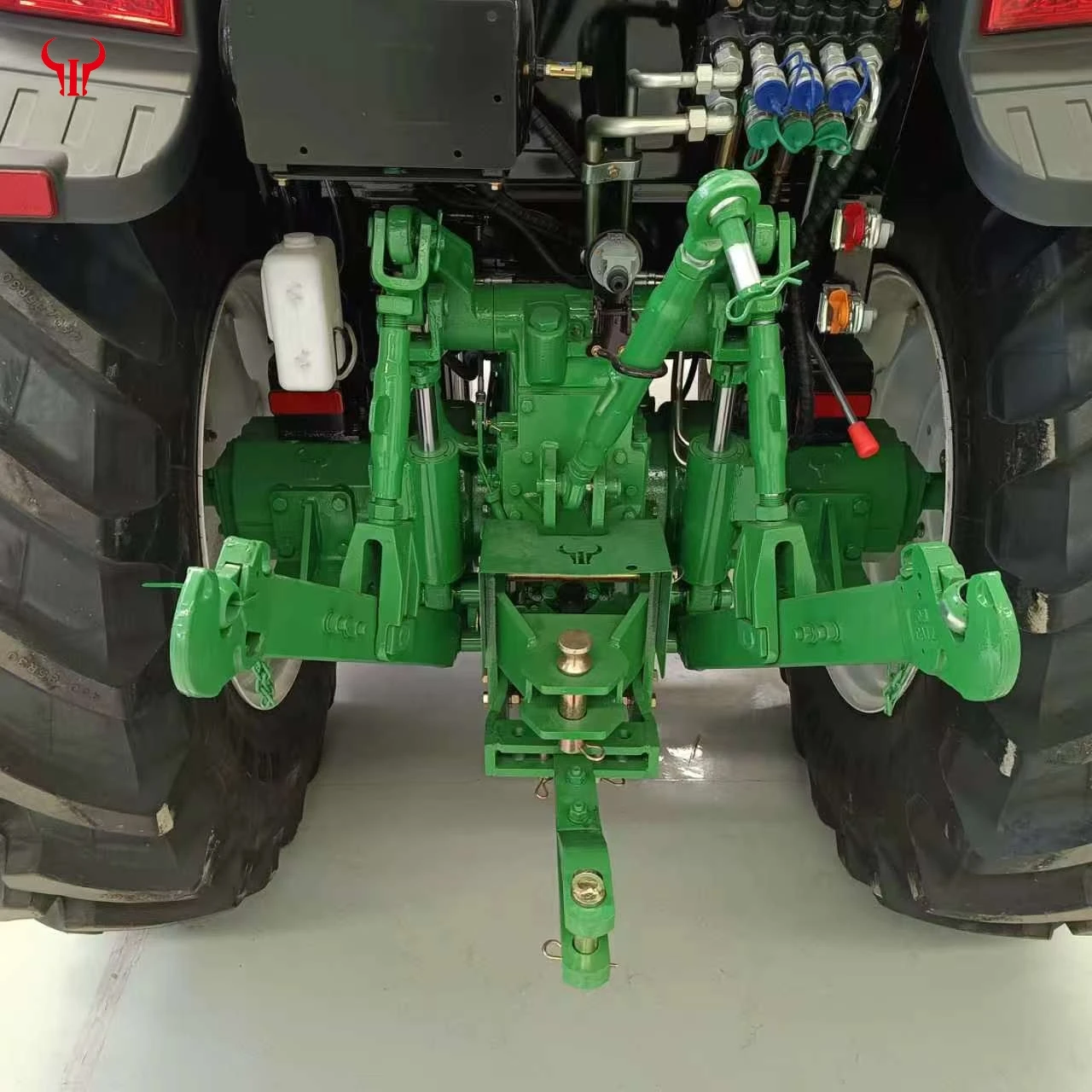

Equipped with a Category Ⅱthree-point hitch, a U-type draw bar and swing tow bar, it allows for the effortless attachment of various large-scale agricultural
Related products
This power-shift tractor adopts advanced electro-hydraulic control technology, enabling smooth and jolt-free direction change without frequent clutch operation. Fitted with a wet clutch, it features excellent heat dissipation, long service life and low transmission failure rate. It delivers high working efficiency, comfortable operation, lower fuel consumption and flexible steering. Widely applicable to various farmland and orchard operations, it is an ideal choice for modern high-efficiency agricultural machinery.
Hybrid tractors adopt a diesel engine plus motor hybrid drive system. Supported by an intelligent energy management system, it dynamically distributes power according to various working conditions such as heavy loads, light loads, sloped fields and paddy fields. The diesel engine operates steadily within its high-efficiency range. Combined with the motor's advantages of high low-speed torque and quick response, the overall fuel saving rate reaches 10%~35% with greatly improved traction. Equipped with stepless speed change, it runs smoothly during operation and effectively reduces labor intensity. It also features regenerative braking for energy recovery.
IRON BULL TRL704-B and TRL504-B are heavy-duty 4WD tractors built by TIANTUO for tough agriculture conditions. With anti-rollover frame, powerful lift/drawbar, and multiple gears, these models ensure safety, high traction, and customization options for global farm equipment distributors.
The TIENIU TNJ704-1(G4) and TNJ504-1(G4) are reliable medium-horsepower tractors from TIANTUO, designed for versatile farm work in global agriculture. With full hydraulic steering, adjustable wheel tracks, high ground clearance, and strong PTO/hydraulic output, these farm equipment models deliver excellent performance, superior cost-effectiveness, and stable after-sales support for distributors serving small to medium farms.
