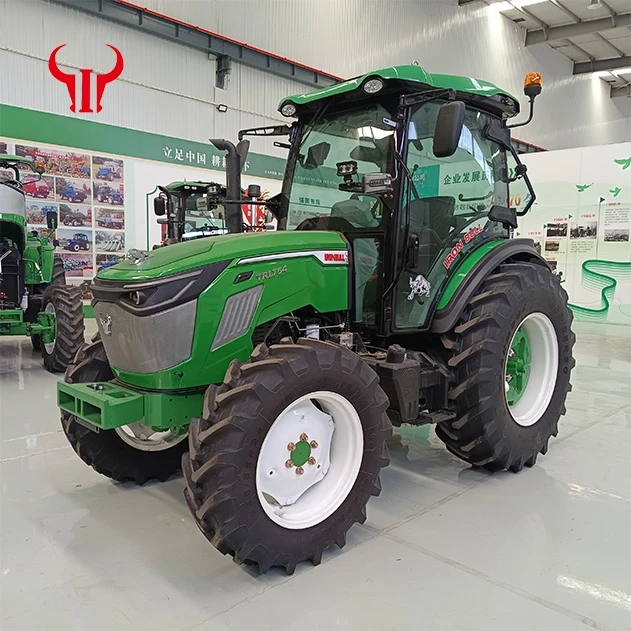

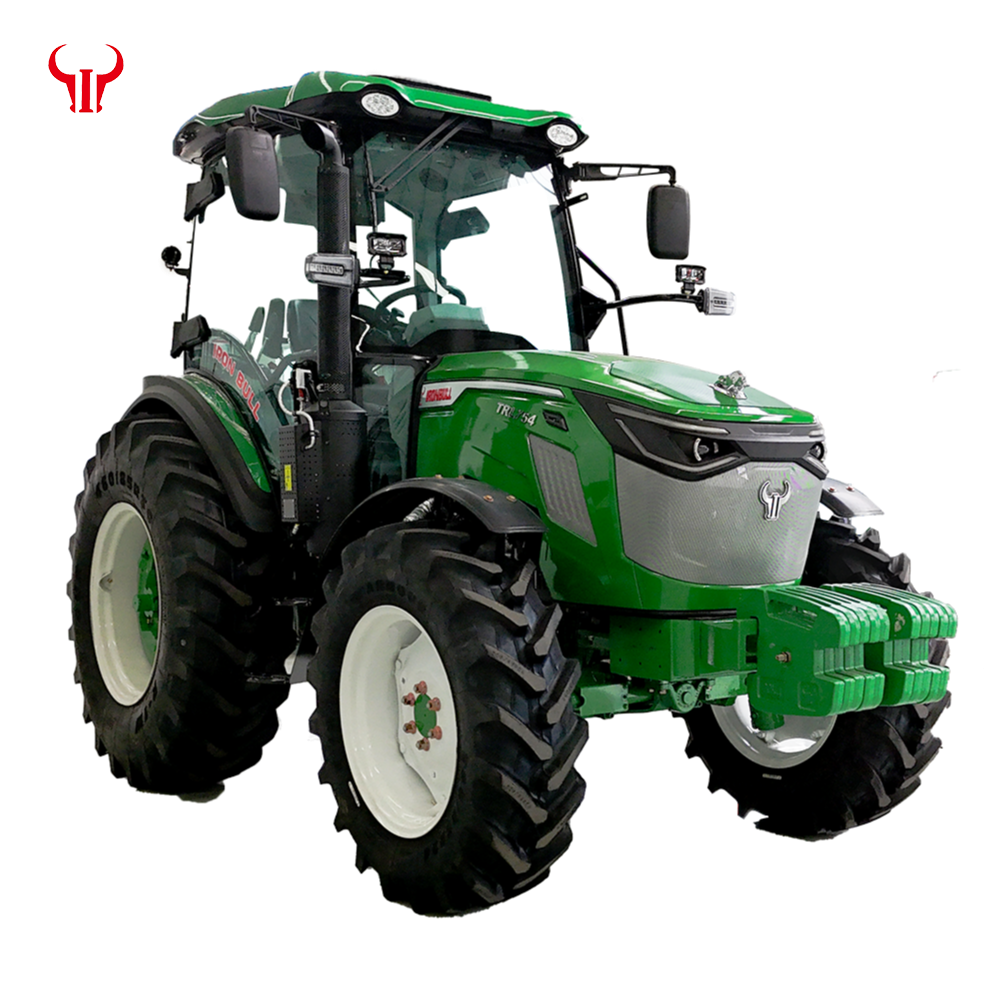

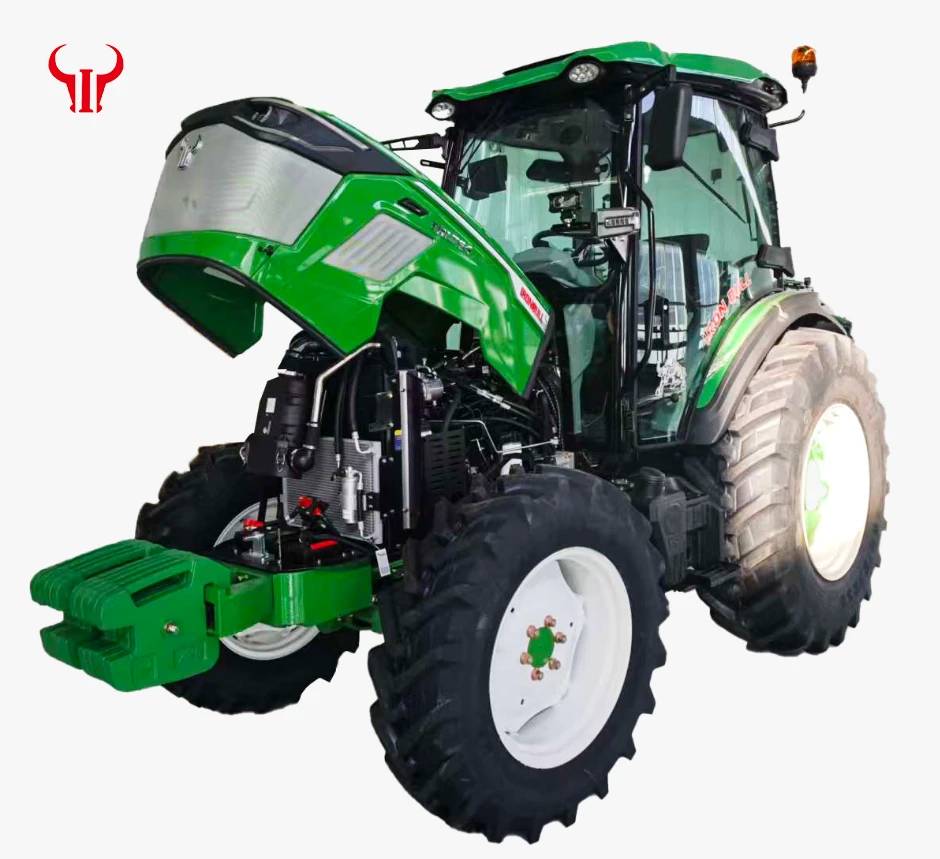

We have developed an E-MARK certified tractor specifically for the EU market. The tractor is constructed using E-MARK certified parts, and the structural integrity of the chassis has been further reinforced. We install premium diesel engine from Yuchai and features a GADT-brand front axle. The transmission utilizes helical gearing, thereby further extending the tractor service life. Depending on their specific operating environment requirements, customers can choose between a model equipped with a safety frame or one featuring an enclosed cabin.
Product Introduction
We have developed an E-MARK certified tractor specifically for the EU market. The tractor is constructed using E-MARK certified parts, and the structural integrity of the chassis has been further reinforced. We install premium diesel engine from Yuchai and features a GADT-brand front axle. The transmission utilizes helical gearing, thereby further extending the tractor service life. Depending on their specific operating environment requirements, customers can choose between a model equipped with a safety frame or one featuring an enclosed cabin.
Technical Overview & Core Parameters
|
TRACTOR MODEL |
TRL754 |
TRL754 |
|
HORSE POWER |
75 HP |
75 HP |
|
WHEEL DRIVE |
4X4 |
|
|
ENGINE BRAND |

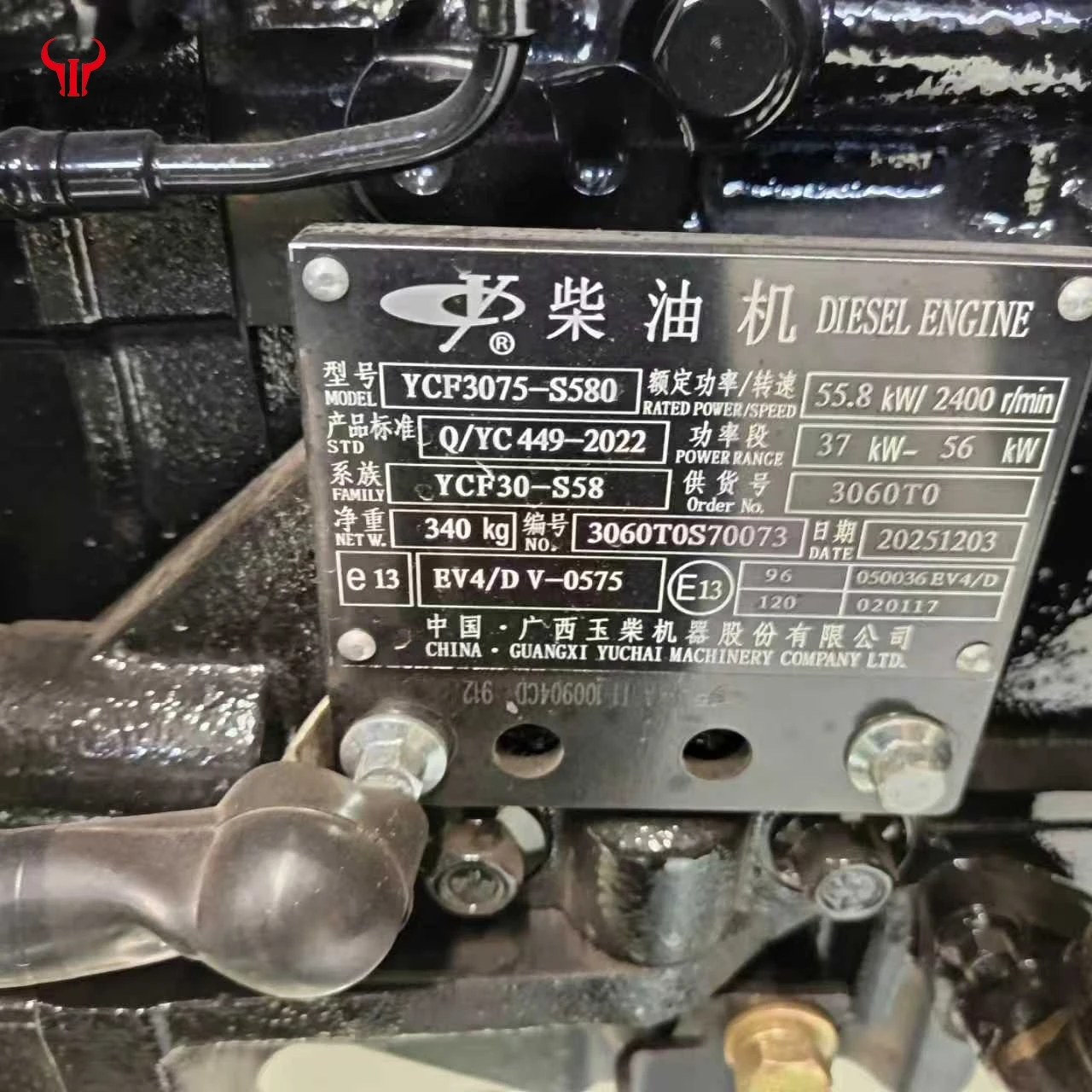

YUCHAI, YCF3075-S580 Model, Euro V Emission Standard |
|
|
ROPS |

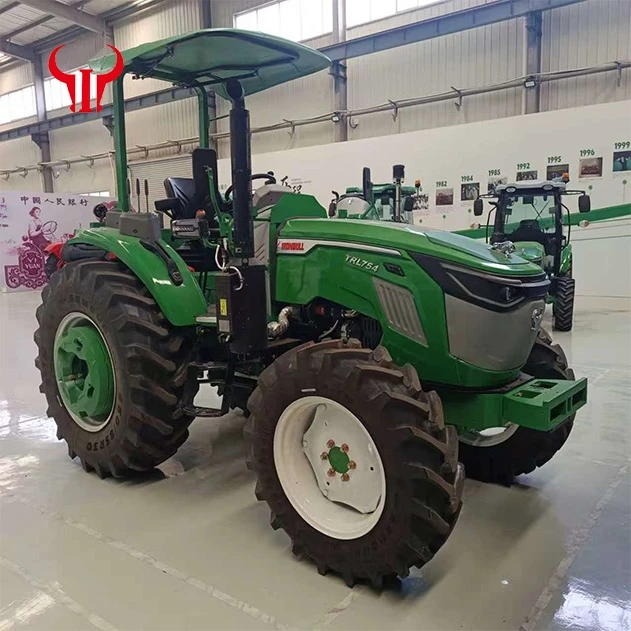

ROLL BAR AND ROOF |
AIR CONDITION CABIN |
|
DIMENSION |
4180X1950x2950 mm |
|
|
GROUND CLEARANCE |
420 MM |
|
|
WEIGHT |
3500 KGS |
|
|
WHEEL TREAD |
1500 MM |
|
|
WHEEL BASE |
2080 MM |
|
|
GEAR SHIFT |
12F+12R |
|
|

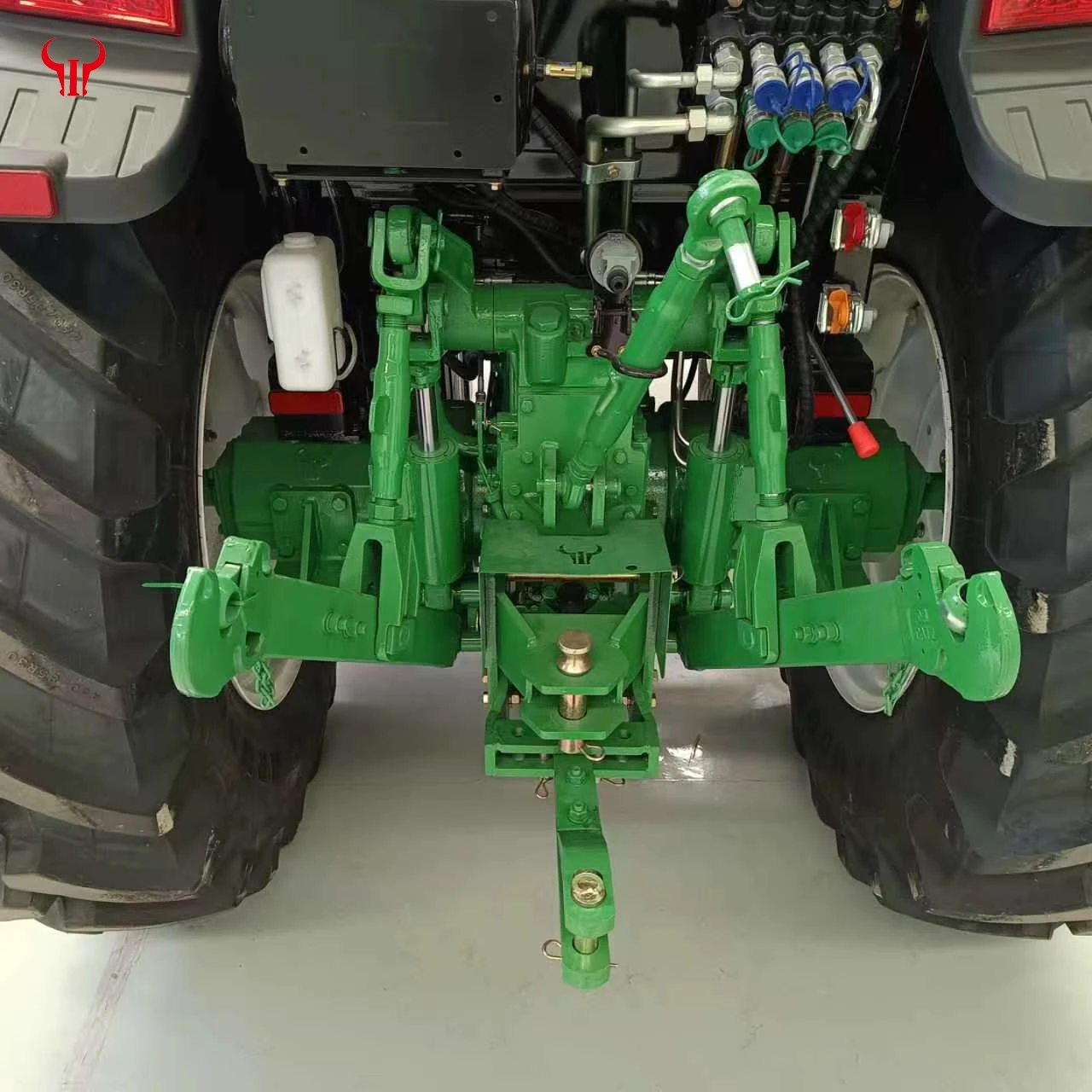

THREE POINT SUSPENSION |
Ⅱ CATEGORY |
|
|
TIRE |
320/85R24-460/85R30 RADIAL TIRE |
|
|
PTO |
6 SPLINES, 35 MM DIAMETER, 540/1000 RPM |
|
|
FUEL TANK CAPACITY |
90 Liters |
|
|
TRAIL DEVICE |
U Type Tow Bar + Swing Tow Bar |
|
Technical Overview & Core Parameters
Tractor holds an E-MARK certificate, allowing for direct export to EU countries and facilitating the necessary procedures for road registration and licensing.
This tractor has many gears 12F+12R shuttle shift, each corresponding to a different driving speed and traction for using.
Install second-class reinforced suspension and can be connected to medium-sized agricultural machinery.
