In order to meet the needs of paddy fields, mountains, hills and other environments, we developed a four-wheel drive tractor with moderate horsepower, light weight, high chassis and strong structural strength. This tractor is 50 hp, weight is 2000 kg, and ground clearance is 360 mm. It is installed A/C Cabin. It can be operated and driven in rice fields and narrow roads. It is ideal for operations on small-plot farms in Europe.
Product Introduction
| TE (TN254/TN354/TN504) |
Reinforced front and rear axles, strong load-bearing capacity and high reliability |
8F+8R, dense gears, reasonable speed ratio, suitable for both operation and transportation |
Shuttle shift, easy operation, friendly for new operators |
Shock-absorbing seat, not easy to get tired during long-time operation |
Balanced performance and price, preferred by small and medium-sized farmers and cooperatives |
Technical Overview & Core Parameters
|
TRACTOR MODEL |
TN254 |
TN504 |
TN504 |
|
|
HORSE POWER |
25HP/18.4 KW |
50HP/36.8 KW |
50HP/36.8 KW |
|
|
ENGINE MODEL |
KM385BT |
4L28V50 |
DEF20CFF4 |
|
|
ENGINE EMISSION |
EURO V |
EURO V |
EURO V |
|
|
WHEEL DRIVE |
4X4 |
|
||
|
ENGINE BRAND |
LAIDONG |
LAIDONG |
YUNNEI |
|
|
ROPS |
ROLL BAR AND ROOF or A/C CABIN |
|
||
|
DIMENSION |
3725 x 1600 x 2510 MM |
3825X1600x2510 mm |
|
|
|
GROUND CLEARANCE |
360 MM |
|
||
|
WEIGHT |
1850 KGS |
2000 KGS |
|
|
|
WHEEL BASE |
1840 MM |
1930 MM |
|
|
|
WHEEL TREAD |
1300 MM |
|
||
|
GEAR SHIFT |
8F+8R |
|
||
|
CLUTCH |
9 INCH, DOUBLE STAGE |
|
||
|
THREE POINT SUSPENSION |
Ⅰ CATEGORY |
|
||
|
TIRE |
260/70R20-320/85R28 RADIAL TIRE |
|
||
|
PTO |
6 SPLINES, 540/1000 RPM |
|
||
Technical Overview & Core Parameters

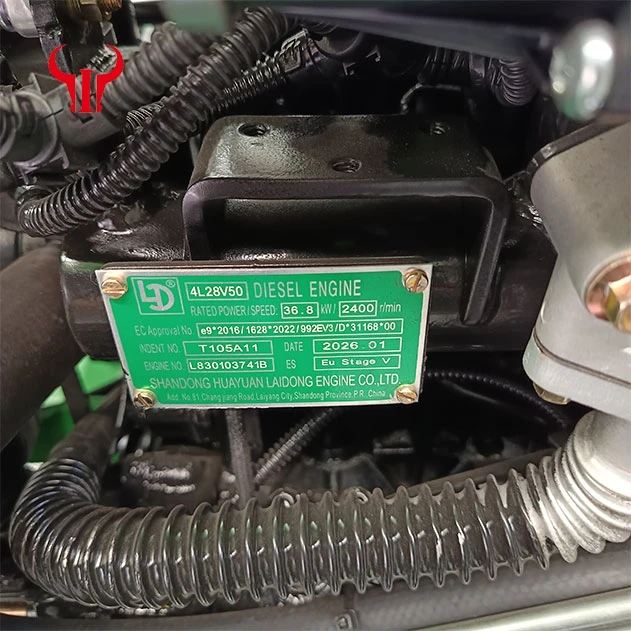

Install Euro V emission standard engine, all parts meet E-MARK certification standards. Tractor holds an E-MARK certificate, allowing for direct export to EU countries and facilitating the necessary procedures for road registration and licensing.

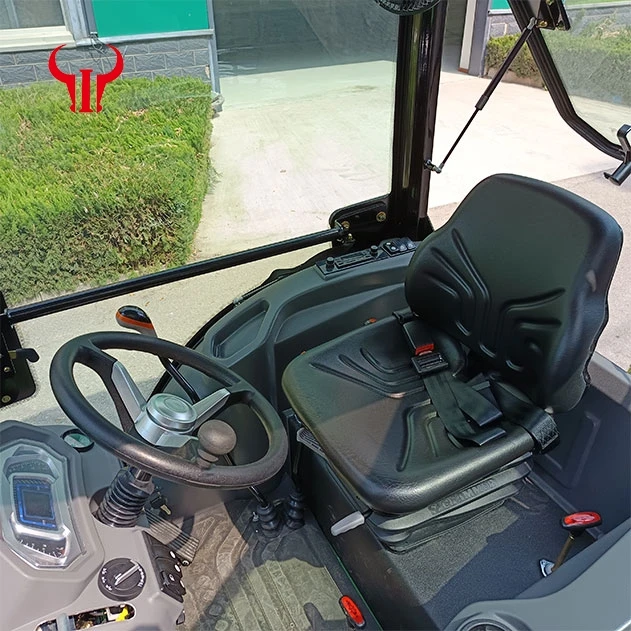

The air-conditioned cab features an air-suspension seat, ensuring a more comfortable driving experience. The 8+8 shuttle-shift transmission design offers more convenient operation.

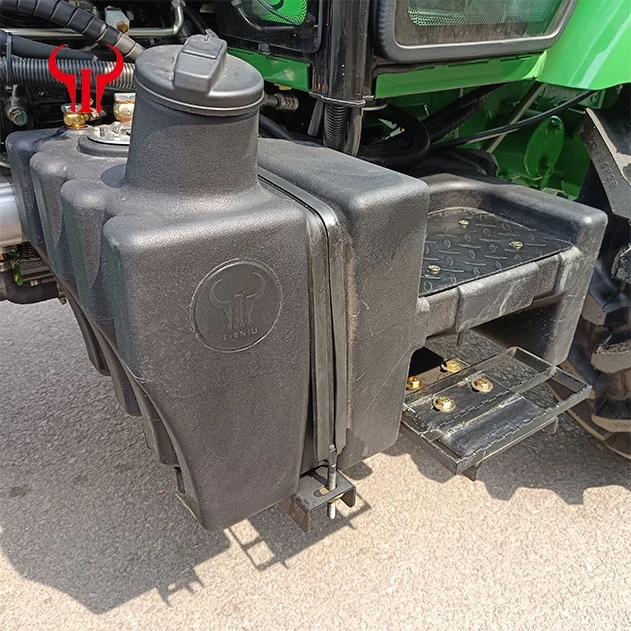

Featuring a large-capacity 70-liter fuel tank, it offers an extended operating range and is fully capable of meeting the demands of a full day of high-intensity work.
Reinforced front and rear axles,
strong load-bearing capacity
and high reliability
Shuttle shift, easy operation,
friendly for new operators
Balanced performance and price,
preferred by small
and medium-sized farmers
and cooperatives
8F+8R, dense gears,
reasonable speed ratio,
suitable for both operation
and transportation
Related products
This power-shift tractor adopts advanced electro-hydraulic control technology, enabling smooth and jolt-free direction change without frequent clutch operation. Fitted with a wet clutch, it features excellent heat dissipation, long service life and low transmission failure rate. It delivers high working efficiency, comfortable operation, lower fuel consumption and flexible steering. Widely applicable to various farmland and orchard operations, it is an ideal choice for modern high-efficiency agricultural machinery.
Hybrid tractors adopt a diesel engine plus motor hybrid drive system. Supported by an intelligent energy management system, it dynamically distributes power according to various working conditions such as heavy loads, light loads, sloped fields and paddy fields. The diesel engine operates steadily within its high-efficiency range. Combined with the motor's advantages of high low-speed torque and quick response, the overall fuel saving rate reaches 10%~35% with greatly improved traction. Equipped with stepless speed change, it runs smoothly during operation and effectively reduces labor intensity. It also features regenerative braking for energy recovery.
IRON BULL TRL704-B and TRL504-B are heavy-duty 4WD tractors built by TIANTUO for tough agriculture conditions. With anti-rollover frame, powerful lift/drawbar, and multiple gears, these models ensure safety, high traction, and customization options for global farm equipment distributors.
The TIENIU TNJ704-1(G4) and TNJ504-1(G4) are reliable medium-horsepower tractors from TIANTUO, designed for versatile farm work in global agriculture. With full hydraulic steering, adjustable wheel tracks, high ground clearance, and strong PTO/hydraulic output, these farm equipment models deliver excellent performance, superior cost-effectiveness, and stable after-sales support for distributors serving small to medium farms.
