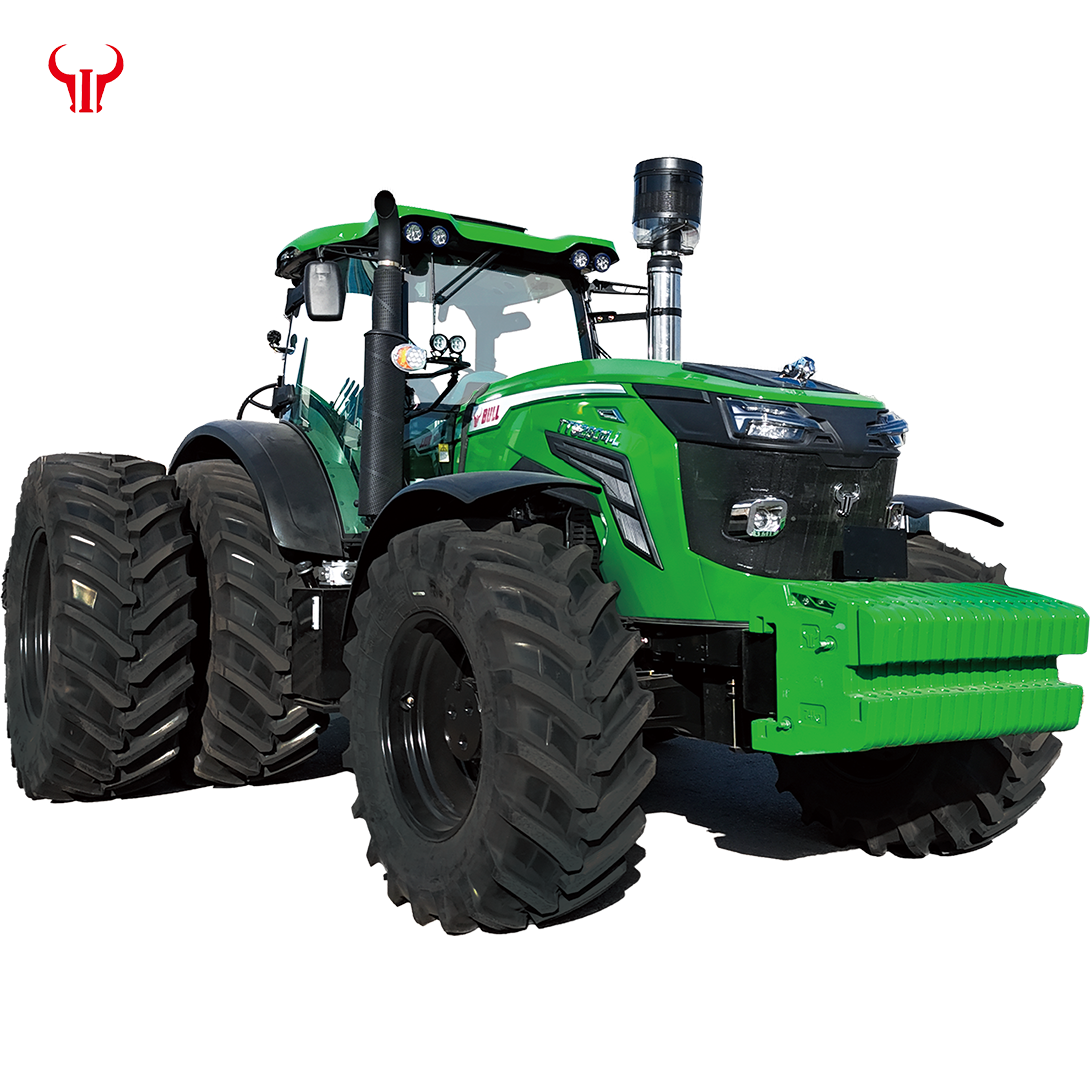

To meet the demands of large farms, we've developed an ultra-heavy-duty wheeled tractor. This tractor boasts a robust structure, a weight capacity of up to 9,000 kg, and 240 horsepower. It offers ample power, strong traction, and wide radial tires. The complete tractor is compatible with a wide range of large agricultural implements.
Product Introduction
To meet the demands of large farms, we've developed an ultra-heavy-duty wheeled tractor. This tractor boasts a robust structure, a weight capacity of up to 9,000 kg, and 240 horsepower. It offers ample power, strong traction, and wide radial tires. The complete tractor is compatible with a wide range of large agricultural implements.
Technical Overview & Core Parameters
|
TRACTOR MODEL |
TTS2004 |
TTS2204 |
TTS2404 |
TTS2604 |
|
HORSE POWER |
200HP |
220HP |
240HP |
260HP |
|
WHEEL DRIVE |
4X4 |
|||
|
ENGINE BRAND |
SHANGCHAI |
|||
|
ENGINE EMISSION |
Ⅲ |
|||
|
ROPS |
A/C CABIN |
|||
|
DIMENSION |
5460X2785X3215 MM |
|||
|
GROUND CLEARANCE |
515MM |
|||
|
WEIGHT |
8555 KGS |
8795 KGS |
9455 KGS |
9655 KGS |
|
WHEEL TREAD |
1680-2380 MM |
|||
|
WHEEL BASE |
2830 MM |
|||
|
GEAR SHIFT |
16F+16R/32F+32R |
|||
|
REAR SUSPENSION |
Ⅲ CATEGORY |
|||
|
TIRE |
540/65R28-650/65R38 RADIAL TIRE |
|||
|
PTO |
6/8/21 SPLINES, 35/38/35 MM, 540/1000 RPM |
|||
Technical Overview & Core Parameters

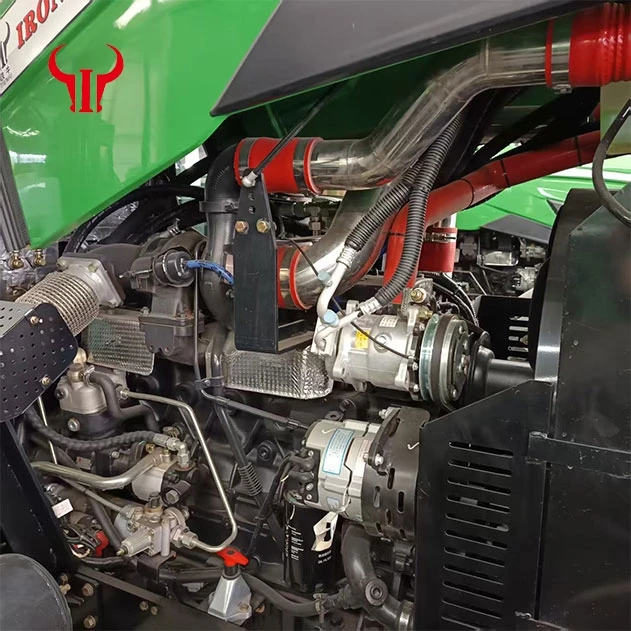

Equipped with the Shanghai Diesel 7H series high-pressure common rail diesel engine, it provides stable and reliable power.

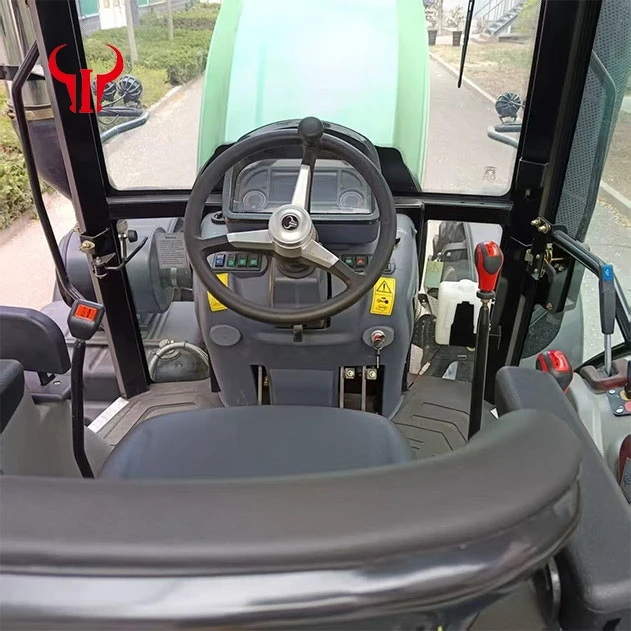

The air-conditioned cab provides a comfortable driving space. Optional 32+32 gears allow the driver to allocate gears appropriately according to different needs.

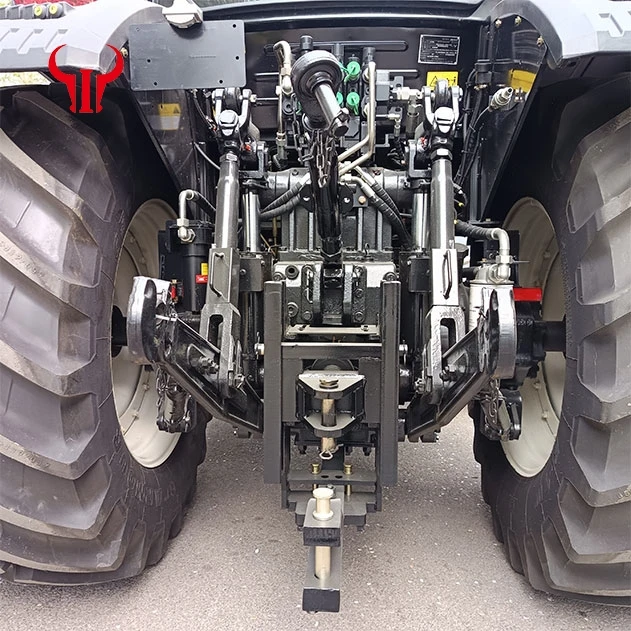

Equipped with a Category III three-point hitch, a U-type draw bar, and a swinging draw bar, it allows for the effortless attachment of various large-scale agricultural implements.
Related products
This power-shift tractor adopts advanced electro-hydraulic control technology, enabling smooth and jolt-free direction change without frequent clutch operation. Fitted with a wet clutch, it features excellent heat dissipation, long service life and low transmission failure rate. It delivers high working efficiency, comfortable operation, lower fuel consumption and flexible steering. Widely applicable to various farmland and orchard operations, it is an ideal choice for modern high-efficiency agricultural machinery.
Hybrid tractors adopt a diesel engine plus motor hybrid drive system. Supported by an intelligent energy management system, it dynamically distributes power according to various working conditions such as heavy loads, light loads, sloped fields and paddy fields. The diesel engine operates steadily within its high-efficiency range. Combined with the motor's advantages of high low-speed torque and quick response, the overall fuel saving rate reaches 10%~35% with greatly improved traction. Equipped with stepless speed change, it runs smoothly during operation and effectively reduces labor intensity. It also features regenerative braking for energy recovery.
IRON BULL TRL704-B and TRL504-B are heavy-duty 4WD tractors built by TIANTUO for tough agriculture conditions. With anti-rollover frame, powerful lift/drawbar, and multiple gears, these models ensure safety, high traction, and customization options for global farm equipment distributors.
The TIENIU TNJ704-1(G4) and TNJ504-1(G4) are reliable medium-horsepower tractors from TIANTUO, designed for versatile farm work in global agriculture. With full hydraulic steering, adjustable wheel tracks, high ground clearance, and strong PTO/hydraulic output, these farm equipment models deliver excellent performance, superior cost-effectiveness, and stable after-sales support for distributors serving small to medium farms.
