TC SERIES 180-210 HP TRACTOR

TC SERIES 180-210 HP TRACTOR

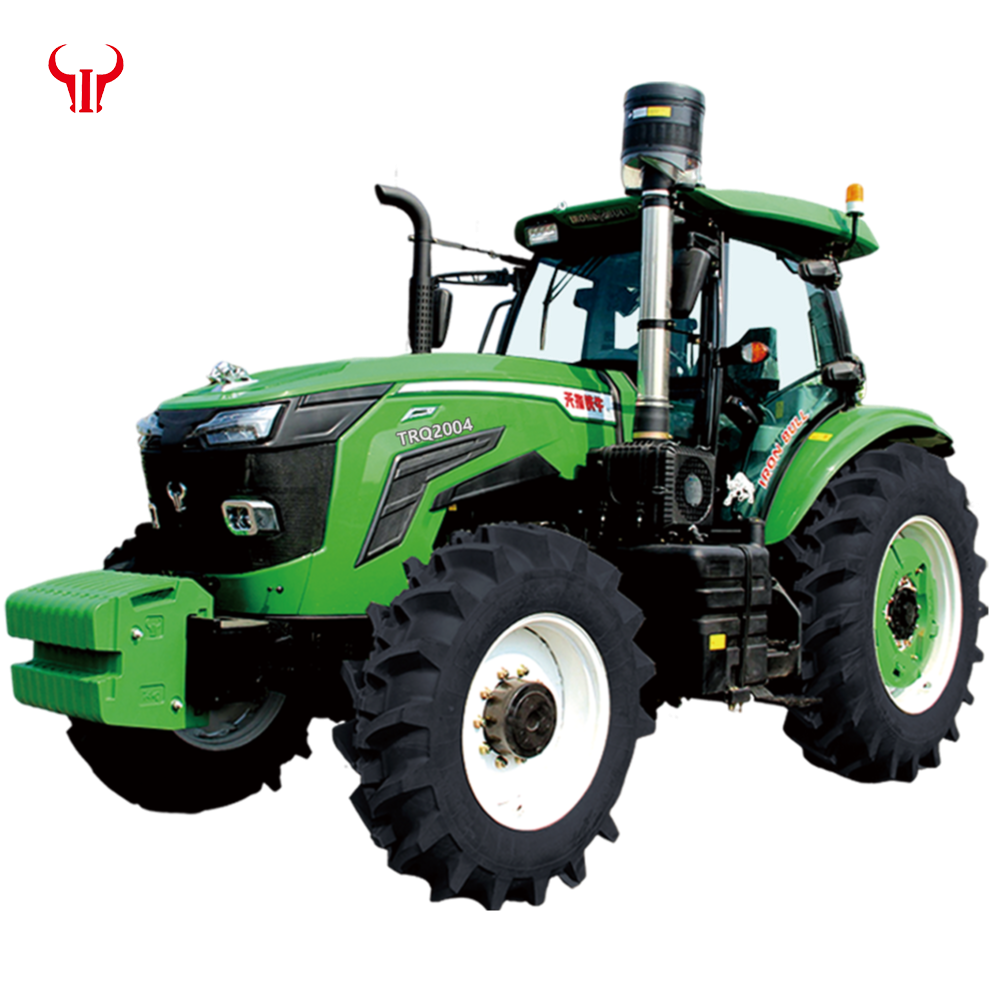

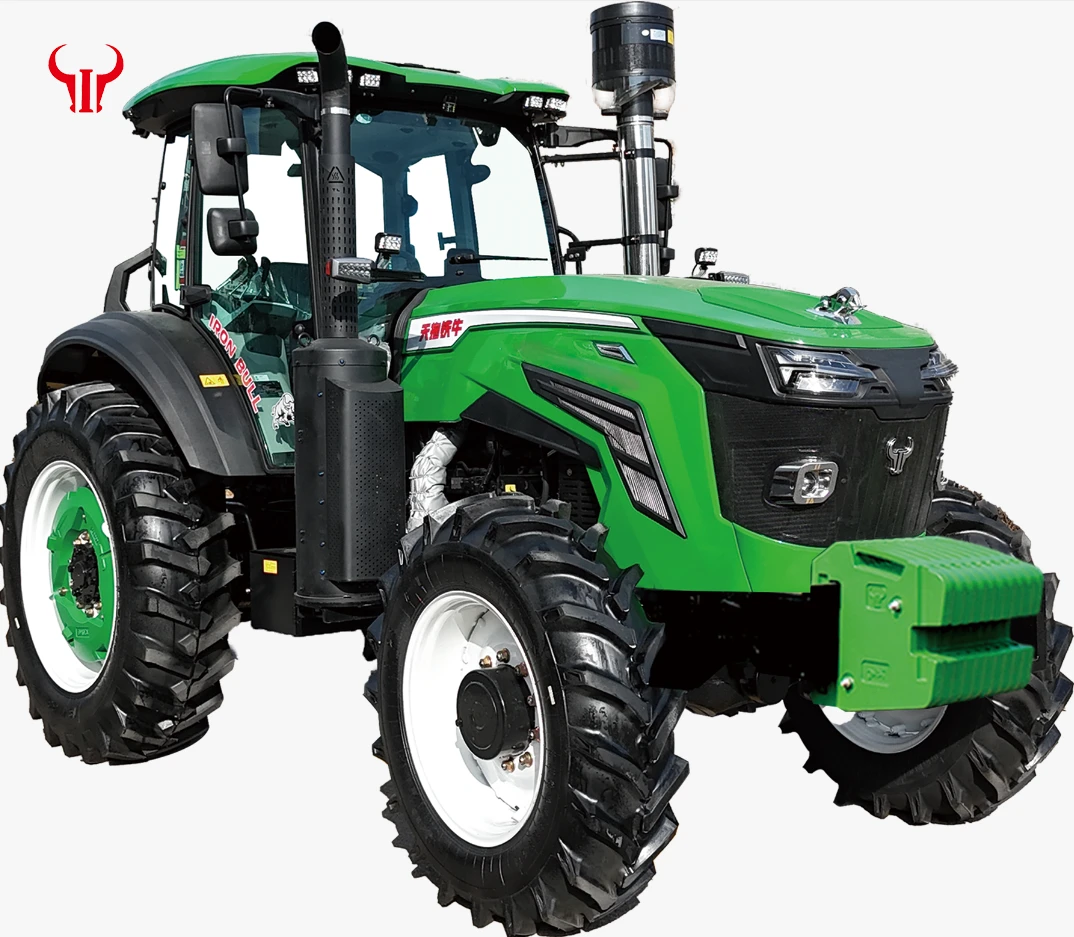

Our company has long specialized in the development of high-horsepower wheeled tractors. This particular model is a 180 hp tractor; under full-load conditions, its net weight reaches 8 tons. It is equipped with a Yuchai brand emission Ⅲ diesel engine, and its transmission system utilizes helical gear drive technology. Characterized by its immense traction and exceptional structural strength, this machine stands as an indispensable and premier choice for operations on medium and large farms.

Product Introduction

Our company has long specialized in the development of high-horsepower wheeled tractors. This particular model is a 180 hp tractor; under full-load conditions, its net weight reaches 8 tons. It is equipped with a Yuchai brand emission Ⅲ diesel engine, and its transmission system utilizes helical gear drive technology. Characterized by its immense traction and exceptional structural strength, this machine stands as an indispensable and premier choice for operations on medium and large farms.

Technical Overview & Core Parameters

TRACTOR MODEL

TRQ1804

TRQ2004

TRQ2104

HORSE POWER

180 HP

200 HP

210 HP

WHEEL DRIVE

4x4

ENGINE BRAND

YUCHAI

ENGINE EMISSION

ROPS

Air Condition Cabin

DIMENSION

5320 x 2280 x 3200 mm

GROUND CLEARANCE

480 kgs

WEIGHT

7210 kgs

7480 kgs

7750 kgs

WHEEL TREAD

1650-2300 mm, Adjustable (可调)

WHEEL BASE

2770 mm

GEAR SHIFT

16+8/24+8

REAR SUSPENSION

Ⅲ Type Three Point Hitch With Quick Hitcher

TIRE

14.9-28/18.4-38 INCH, 540/65R30-650/65R42 Radial Tire

PTO

6/8/21 Splines, 540/1000 rpm

Technical Overview & Core Parameters

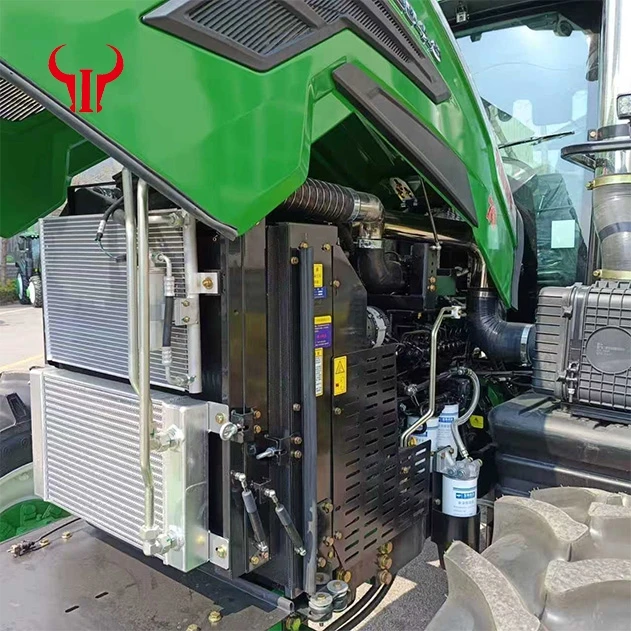

Equipped with a Yuchai diesel engine and featuring turbocharged intake, it is capable of meeting operational requirements in high-altitude regions.

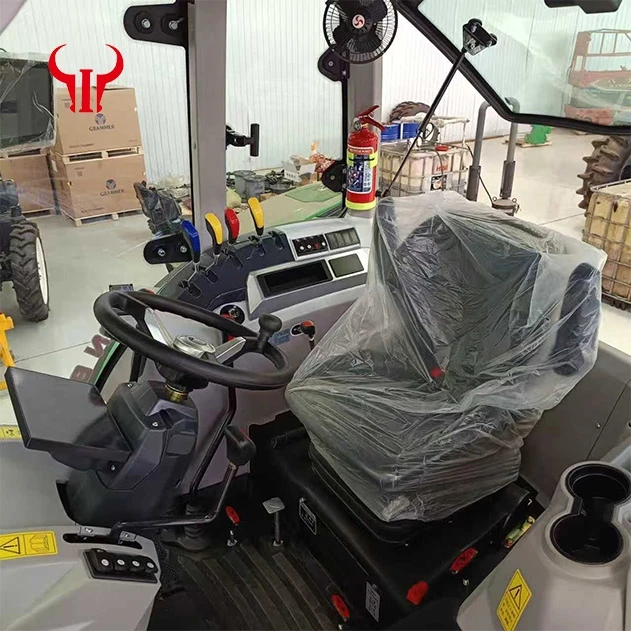

Equipped with an air-conditioned cab, the driving and riding space offers exceptional comfort. With a choice of 16+8 or 24+8 gear configurations, the operator can select the optimal gear ratio to suit a variety of operational needs.

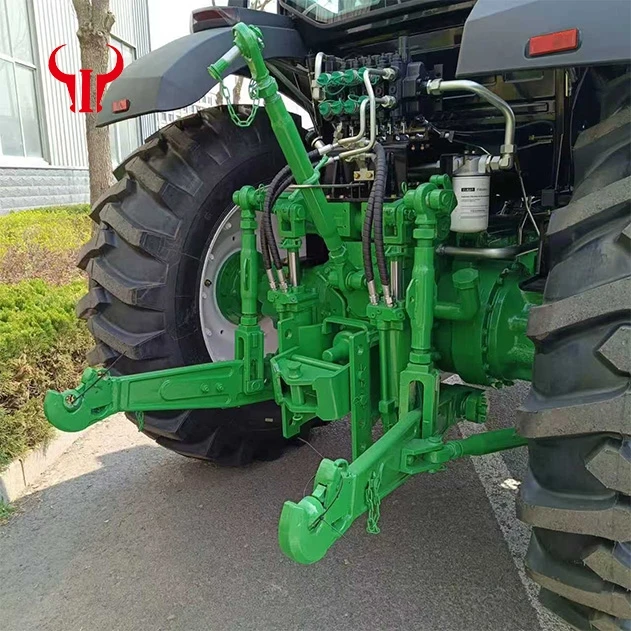

Equipped with a Category III three-point hitch, a U-type draw bar, it allows for the effortless attachment of various large-scale agricultural implements.
