Due to the development of agriculture , many medium and large farms have emerged around the world. Faced with the ever-expanding cultivated land area, small tractors can no longer meet the needs . In order to reduce the investment of agricultural producers in agricultural machinery, we developed a basic large tractor. It has a heavy body, strong traction, and a low price.
Product Introduction
Due to the development of agriculture , many medium and large farms have emerged around the world. Faced with the ever-expanding cultivated land area, small tractors can no longer meet the needs . In order to reduce the investment of agricultural producers in agricultural machinery, we developed a basic large tractor. It has a heavy body, strong traction, and a low price.
Technical Overview & Core Parameters
|
TRACTOR MODEL |
TTF1204 |
TTF1404 |
TTF1604 |
|
HORSE POWER |
120 HP |
140 HP |
160 HP |
|
WHEEL DRIVE |
4X4 |
||
|
ENGINE BRAND |
YUCHAI |
||
|
EMISSION |
Ⅲ |
||
|
ROPS |
Air Condition Cabin |
||
|
DIMENSION |
5110 x 2150 x 3010 mm |
||
|
GROUND CLEARANCE |
480 mm |
||
|
WEIGHT |
5360 kgs |
||
|
WHEEL TREAD |
1720-2010mm |
||
|
WHEEL BASE |
2690 mm |
||
|
GEAR SHIFT |
16+8 |
||
|
REAR SUSPENSION |
Ⅲ Type |
||
|
TIRE |
12.4-24/16.9-34, 14.9-24/18.4-30 INCH |
||
|
PTO |
6/8 Splines, 540/1000 rpm |
||
Technical Overview & Core Parameters

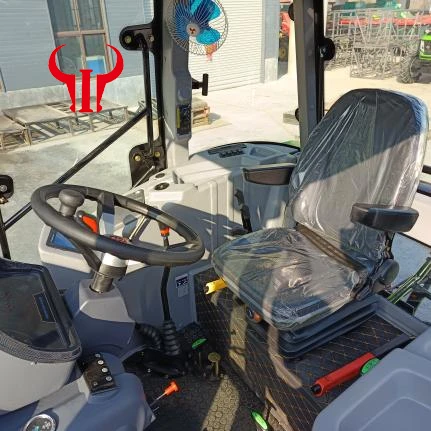

A/C cabin and air-cushioned seat provide a comfortable operating environment. 16F+8R gears or 24F+8R crawler gears optional to meet different operating.

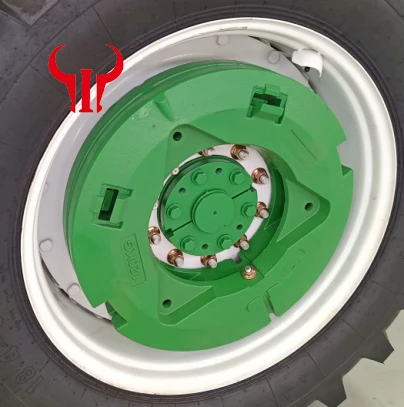

Customers can increase the number of rear counterweight layers according to their specific requirements, bringing the maximum total vehicle weight up to 6 tons.

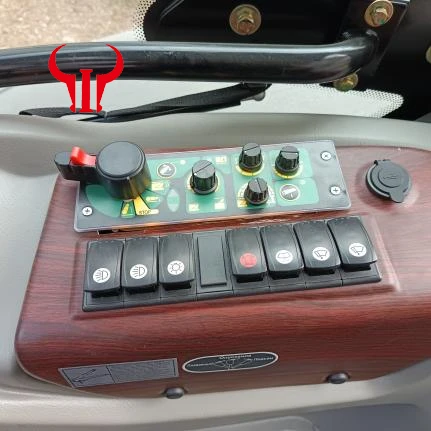

The three-point linkage and hydraulic output valves can be optionally equipped with an electronic control panel, providing you with intelligent operational capabilities.
