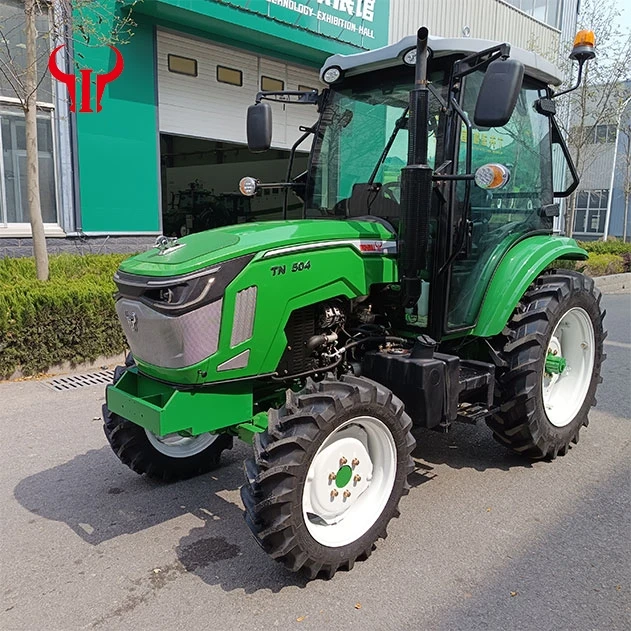

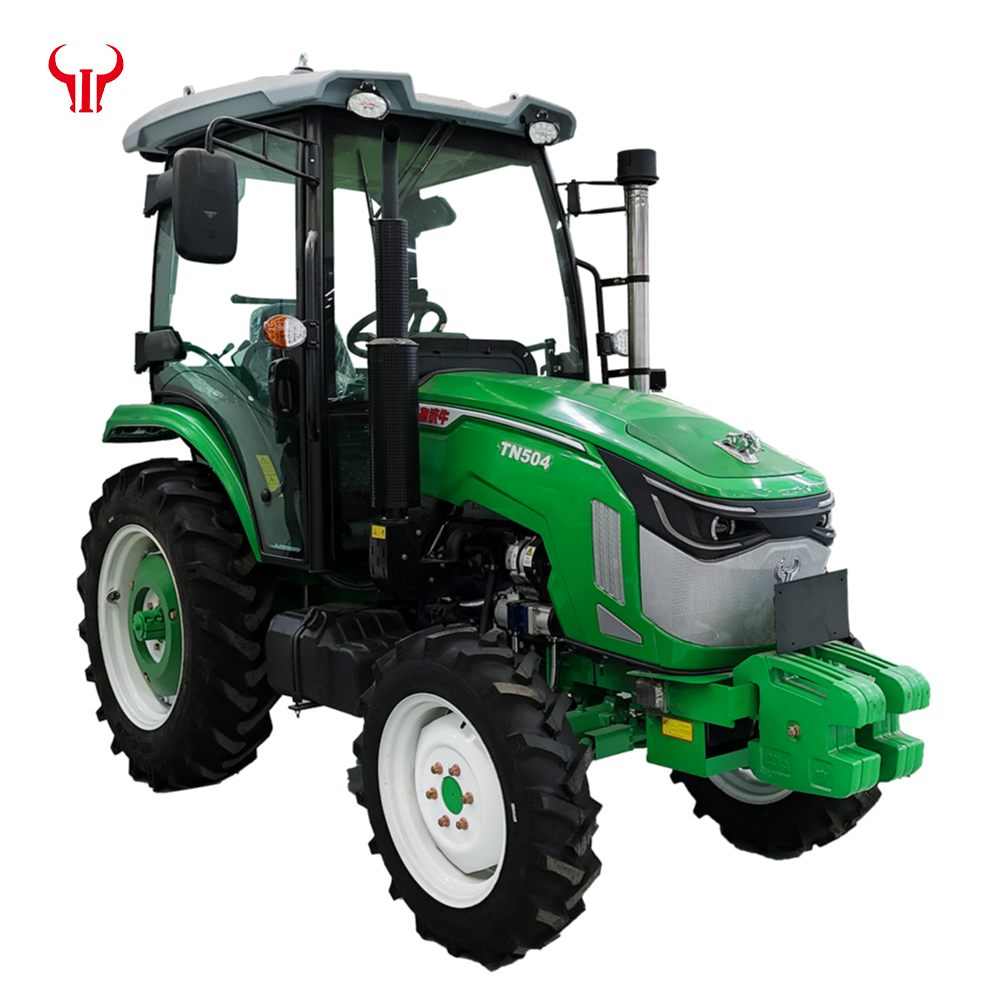

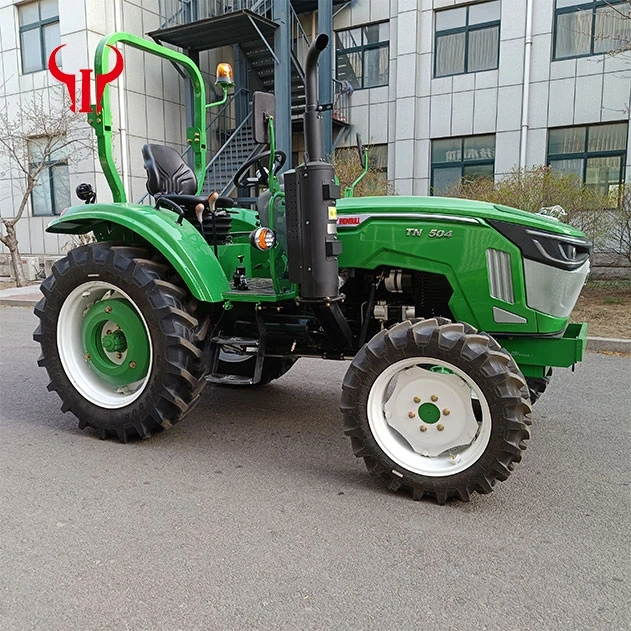

TE SERIES 25-50 HP TRACTOR

TE SERIES 25-50 HP TRACTOR

TE chassis tractors are medium and small-sized driving models. Featuring a compact structure, they combine flexibility and stability, and are suitable for operations in hilly lands, orchards and small farmlands.

Product Introduction

TE
(TN254/TN354/TN504)

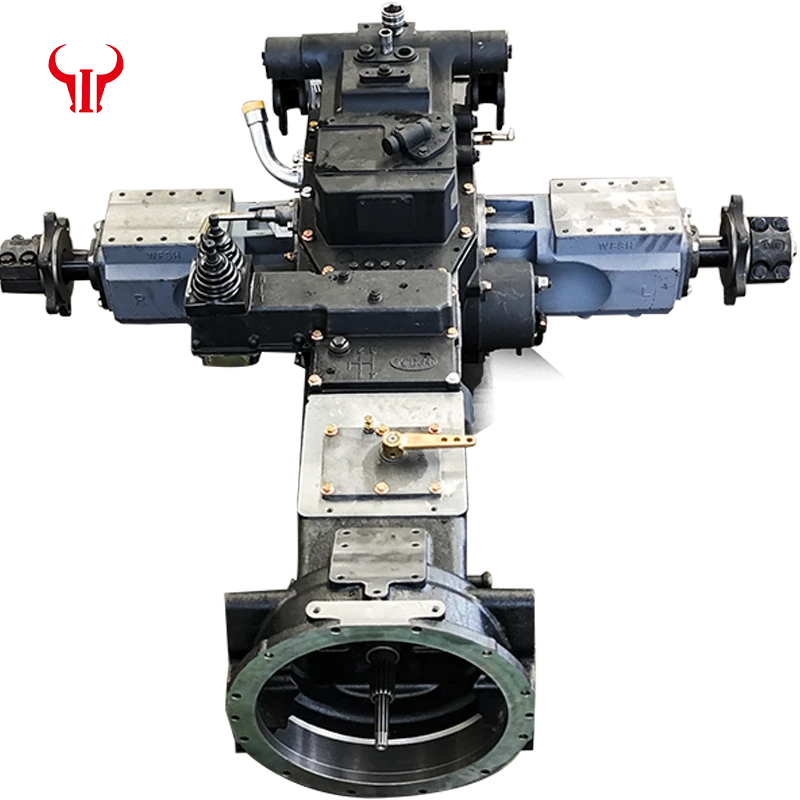

Reinforced front and rear axles,
strong load-bearing capacity
and high reliability

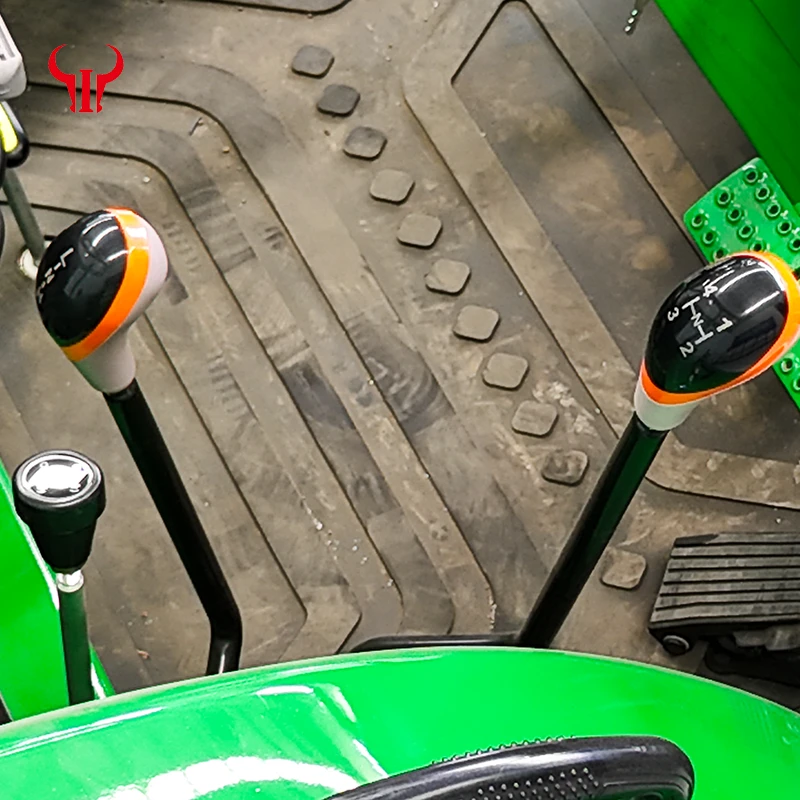

8F+8R, dense gears,
reasonable speed ratio,
 suitable for both operation
 and transportation

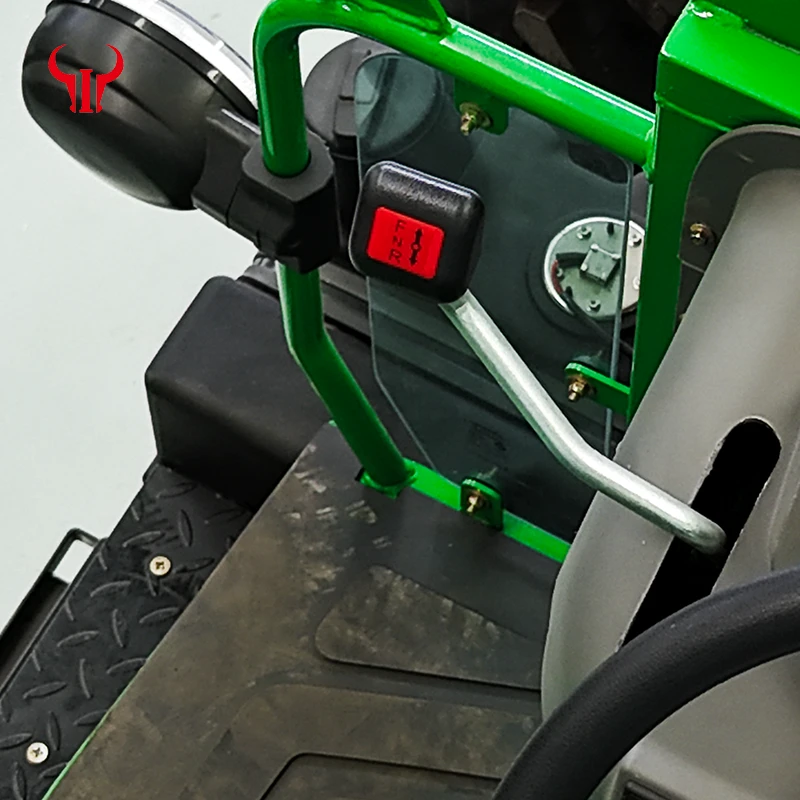

Shuttle shift, easy operation,
 friendly for new operators

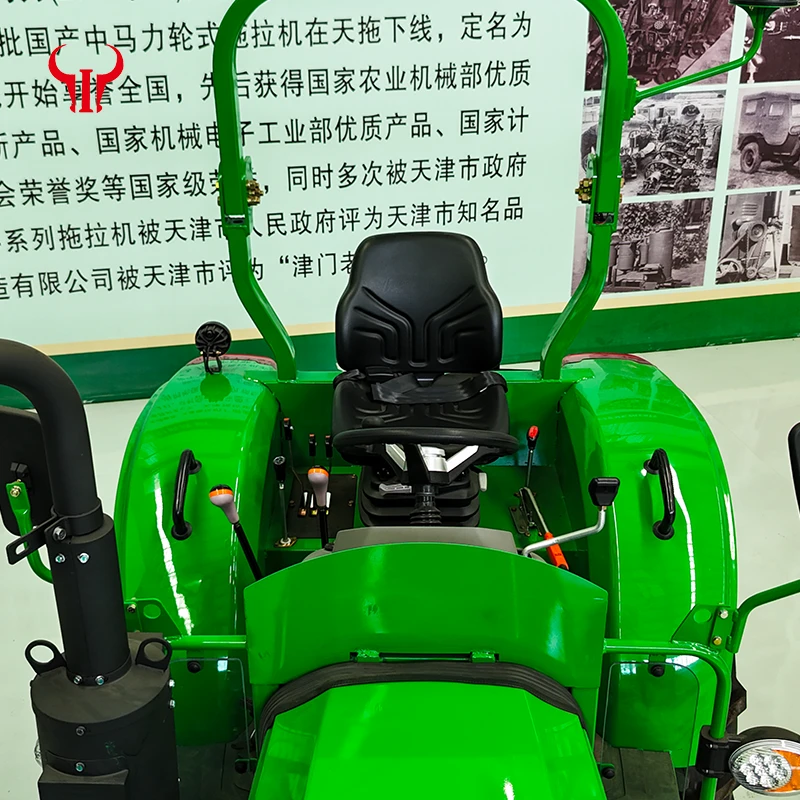

Shock-absorbing seat,
 not easy to get tired
during long-time operation
Balanced performance and price,
 preferred by small
and medium-sized farmers
and cooperatives

Technical Overview & Core Parameters

TRACTOR MODEL

TN254

TN354

TN504



HORSE POWER

25HP

35HP

50HP



WHEEL DRIVE

4X4



ENGINE BRAND

LAIDONG, EMISSION Ⅱ (国二),stageV



ROPS

ROLL BAR AND ROOF/ CABIN



DIMENSION

3760 x 1380 x 2480 MM



GROUND CLEARANCE

420 MM



WEIGHT

1910-1950 KGS



WHEEL BASE

1930 MM



WHEEL TREAD

1100-1300 MM



GEAR SHIFT

8F+8R



CLUTCH

9 INCH, DOUBLE STAGE



THREE POINT SUSPENSION

Ⅰ CATEGORY



TIRE

260/70R20-320/85R28, 280/70R16-360/70R24 RADIAL TIRE



PTO

6 SPLINES, 540/1000 RPM



FUEL TANK CAPACITY

70 Liters



Technical Overview & Core Parameters

Reinforced front and rear axles,
strong load-bearing capacity
and high reliability

8F+8R, dense gears,
reasonable speed ratio,
 suitable for both operation
 and transportation

Shuttle shift, easy operation,
 friendly for new operators

Shock-absorbing seat,
 not easy to get tired
during long-time operation

Balanced performance and price,
 preferred by small
and medium-sized farmers
and cooperatives
