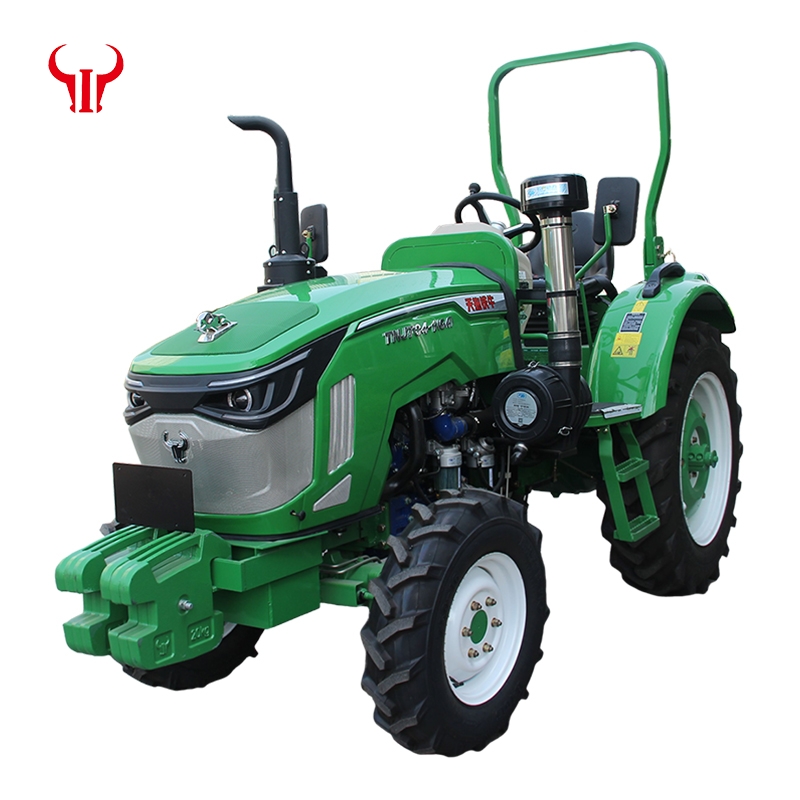

The TIENIU TNJ704-1(G4) and TNJ504-1(G4) are reliable medium-horsepower tractors from TIANTUO, designed for versatile farm work in global agriculture. With full hydraulic steering, adjustable wheel tracks, high ground clearance, and strong PTO/hydraulic output, these farm equipment models deliver excellent performance, superior cost-effectiveness, and stable after-sales support for distributors serving small to medium farms.
Technical Overview & Core Parameters
|
NO. |
Configuration |
Unit |
Parameter |
|
1 |
Mode1 |
/ |
TNJ704-1(G4) |
|
2 |
Type |
/ |
4 ×4 Four-wheel drive |
|
3 |
Dimension(L×W×H) |
mm |
3850×1380×2480()() |
|
4 |
Minimum usage quality |
kg |
2075 (Safety Frame) (Narrow Wheelbase) |
|
5 |
Wheelbase |
mm |
1930 |
|
6 |
Wheel track(front) |
mm |
960、1000、1100、1200、1300、1400 |
|
7 |
Wheel track(rear) |
m |
960～1100、1200～1400 |
|
8 |
Number of gears |
/ |
8+8 |
|
9 |
Clutch |
/ |
9 Inches, dry, double acting |
|
10 |
Minimum ground clearance |
m |
420 (Front Bridge Drain Bolt) |
|
11 |
Engine |
/ |
YN38NDE4() |
|
12 |
Rated power |
kW |
51.5 |
|
13 |
Rated speed |
r/min |
2300 |
|
14 |
Steering system type |
/ |
Fu11 hydraulic steering |
|
15 |
Tire size(front/rear) |
/ |
7.50-16/11.2-28 |
|
16 |
Standard counterweight(front/rear) |
kg |
120/60 |
|
17 |
Number of hydraulic output groups |
Group |
2 Group |
|
18 |
PTO |
r/min |
540/760 |
|
19 |
Maximum drawbar pu11 |
kN |
18 |
|
20 |
Maximum hoist capacity |
kN |
13 |
Core Advantages & Technical Overview
Powerful & Efficient Engine
Yunnei engines (51.5 kW / 36.8 kW) provide strong torque for demanding tasks at 2300-2400 rpm.
High Ground Clearance & Adaptability
Up to 420 mm clearance with adjustable wheel tracks (960-1400 mm) for row crops and rough terrain.
Robust Hydraulics & Lifting
2 hydraulic groups, 13/9 kN lift capacity, and 18/17 kN drawbar pull for heavy implements.
User-Friendly Transmission
8+8 or 9-inch dry double-acting clutch, full hydraulic steering for easy operation.
Supported Farm Implements (35-70HP range)
Rotary tiller, disc plough, disc harrow, cultivator, seed drill, small baler, mower, sprayer, light front loader, trailer.
