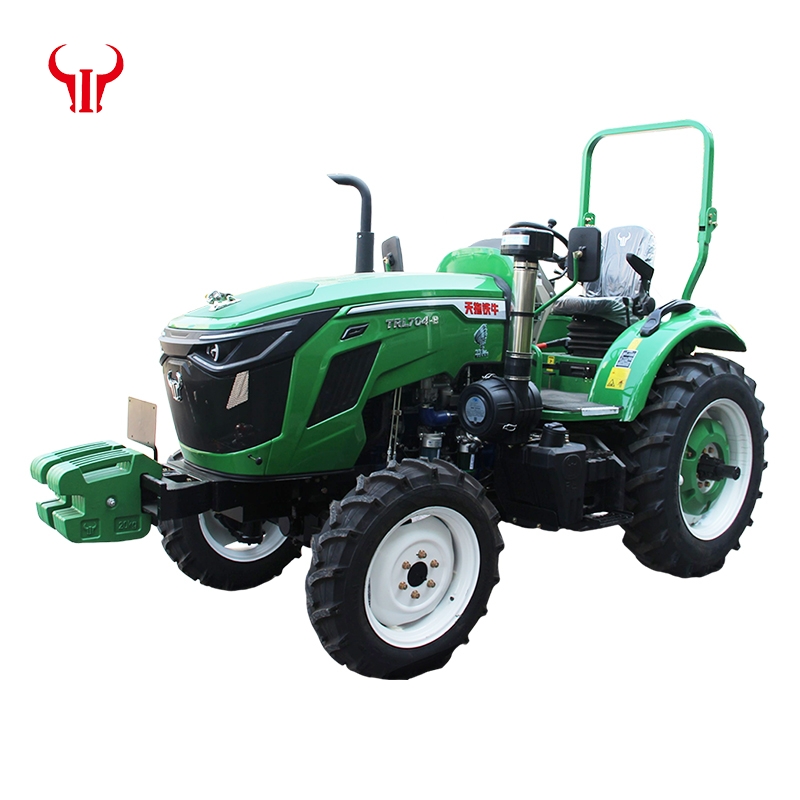

IRON BULL TRL704-B and TRL504-B are heavy-duty 4WD tractors built by TIANTUO for tough agriculture conditions. With anti-rollover frame, powerful lift/drawbar, and multiple gears, these models ensure safety, high traction, and customization options for global farm equipment distributors.
Product Introduction
IRON BULL TRL704-B and TRL504-B are heavy-duty 4WD tractors built by TIANTUO for tough agriculture conditions. With anti-rollover frame, powerful lift/drawbar, and multiple gears, these models ensure safety, high traction, and customization options for global farm equipment distributors.
Technical Overview & Core Parameters
|
NO. |
Configuration |
Unit |
Parameter |
|
1 |
Model |
/ |
TRL704-B |
|
2 |
Type |
/ |
4×4(Four-wheel drive) |
|
3 |
Dimension(L×W×H) |
mm |
4115×1595×2590 |
|
4 |
Minimun usage quality |
kg |
2500 (Safety rack) |
|
5 |
Wheelbase |
mm |
2030 |
|
6 |
Wheel track(front) |
mm |
1300、1350、1420、1550 |
|
7 |
Wheel track(rear) |
mm |
1300、1400、1500、1600 |
|
8 |
Number of gears |
/ |
12+12 |
|
9 |
Clutch |
/ |
11 Inches, dry, double acting |
|
10 |
Minimum ground clearance |
mm |
380 (Bottom of rear towing frame) |
|
11 |
Engine |
/ |
YN38NDE4 |
|
12 |
Rated power |
kW |
51.5 |
|
13 |
Rated speed |
r/min |
2300 |
|
14 |
Steering system type |
/ |
Fu11 hydraulic steering |
|
15 |
Tire model(front/rear) |
/ |
9.5-24/14.9-30 |
|
16 |
Standard counterweight(front/rear) |
kg |
160/60 |
|
17 |
Number of hydraulic output groups |
Group |
2 Group |
|
18 |
PTO |
r/min |
540/760 |
|
19 |
Maximum drawbar pu11 |
kN |
22 |
|
20 |
Maximum hoist capacity |
kN |
13 |
Technical Overview & Core Parameters

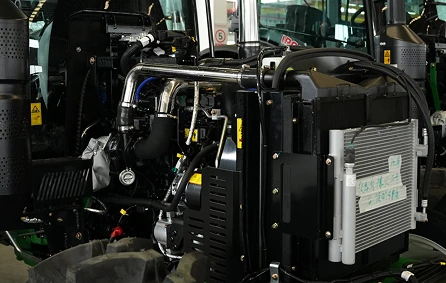

Superior Traction
22/20 kN drawbar pull with wide adjustable tracks.

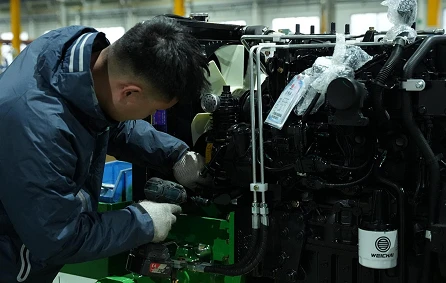

Enhanced Safety & Lift
Anti-rollover design, 13/9 kN hoist capacity.

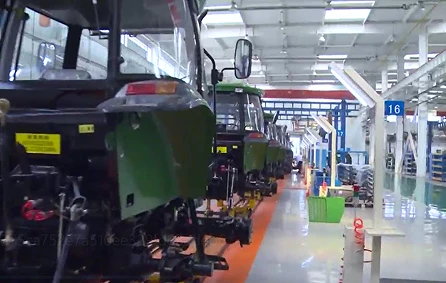

Advanced Hydraulics
2 groups, 540/760 PTO for multi-implement use.

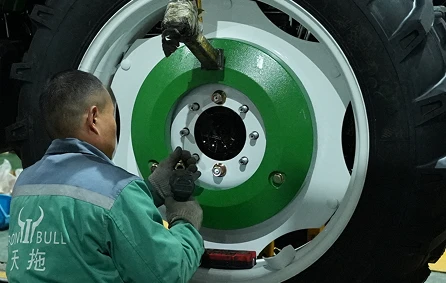

Durable Build
2500+ kg minimum weight for stability in heavy work.
Supported Farm Implements (50-90HP)
Mouldboard plough, heavy disc harrow, subsoiler, combine harvester header, larger baler.
