This power-shift tractor adopts advanced electro-hydraulic control technology, enabling smooth and jolt-free direction change without frequent clutch operation. Fitted with a wet clutch, it features excellent heat dissipation, long service life and low transmission failure rate. It delivers high working efficiency, comfortable operation, lower fuel consumption and flexible steering. Widely applicable to various farmland and orchard operations, it is an ideal choice for modern high-efficiency agricultural machinery.
Product Introduction
| TTP1204-X | Turnaround time reduced by over 60%, greatly improved operating efficiency. | Equipped with wet multi-plate clutch, heat dissipation capacity increased by 80%. | Lower cab noise compared with traditional models. | Eliminates frequent clutch operation and reduces labor intensity. |
Suitable for heavy load, light load, sloped fields and other working scenarios. |
Technical Overview & Core Parameters
|

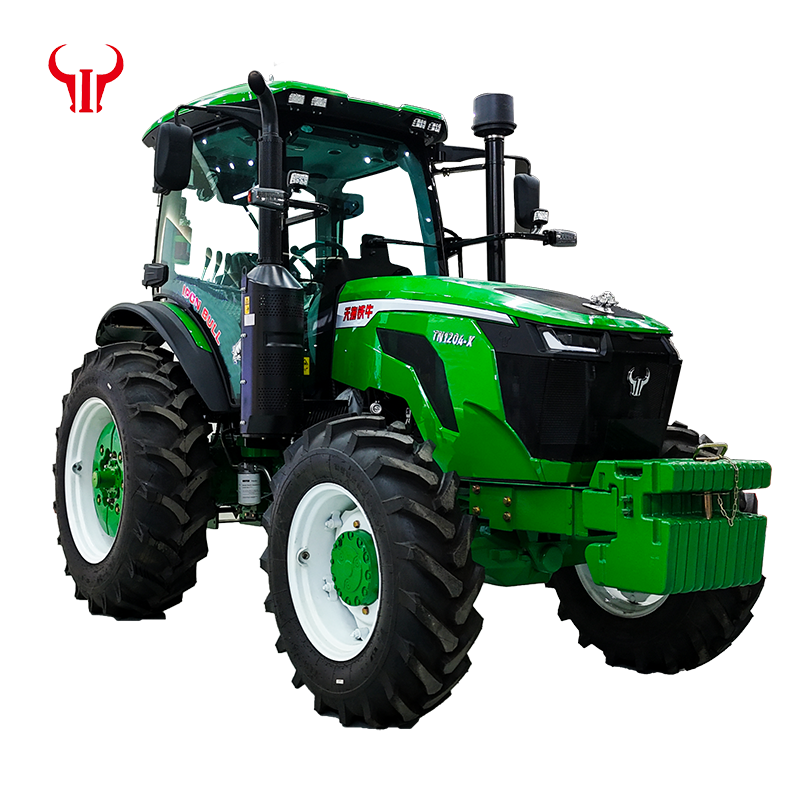

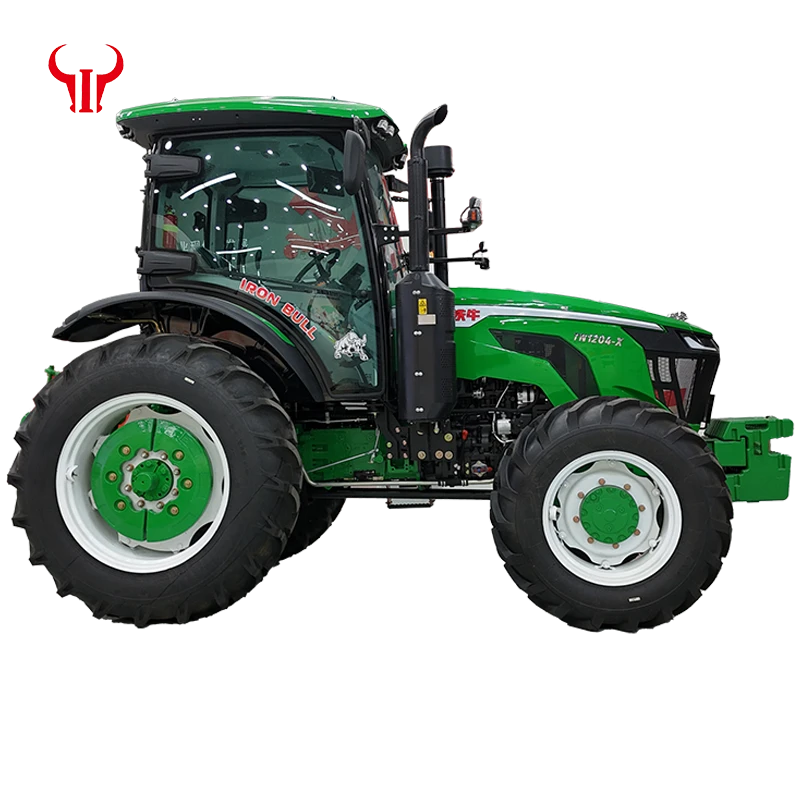

TRACTOR MODEL |
TTP1204-X |
|
HORSE POWER |
120HP |
|
WHEEL DRIVE |
4X4 |
|
ENGINE BRAND |
YUCHAI YCF39104-T481 |
|
ROPS |
ROLL BAR AND ROOF/ CABIN |
|
DIMENSION |
4400 x 1810 x 2830MM |
|
GROUND CLEARANCE |
400mm |
|
WEIGHT |
3845kg |
|
WHEEL BASE |
2180MM |
|
WHEEL TREAD |
1300-1820 MM |
| Power battery level |
6KWH |
| Fuel tank capacity | 500L |
|
TIRE |
9.5-24/14.9-30 |
|
PTO |
540/760 RPM |
|
RATED POWER |
88.2 |
Technical Overview & Core Parameters
Lower cab noise compared with traditional models.
Eliminates frequent clutch operation and reduces labor intensity.
Equipped with wet multi-plate clutch, heat dissipation capacity increased by 80%.
Turnaround time reduced by over 60%, greatly improved operating efficiency.
