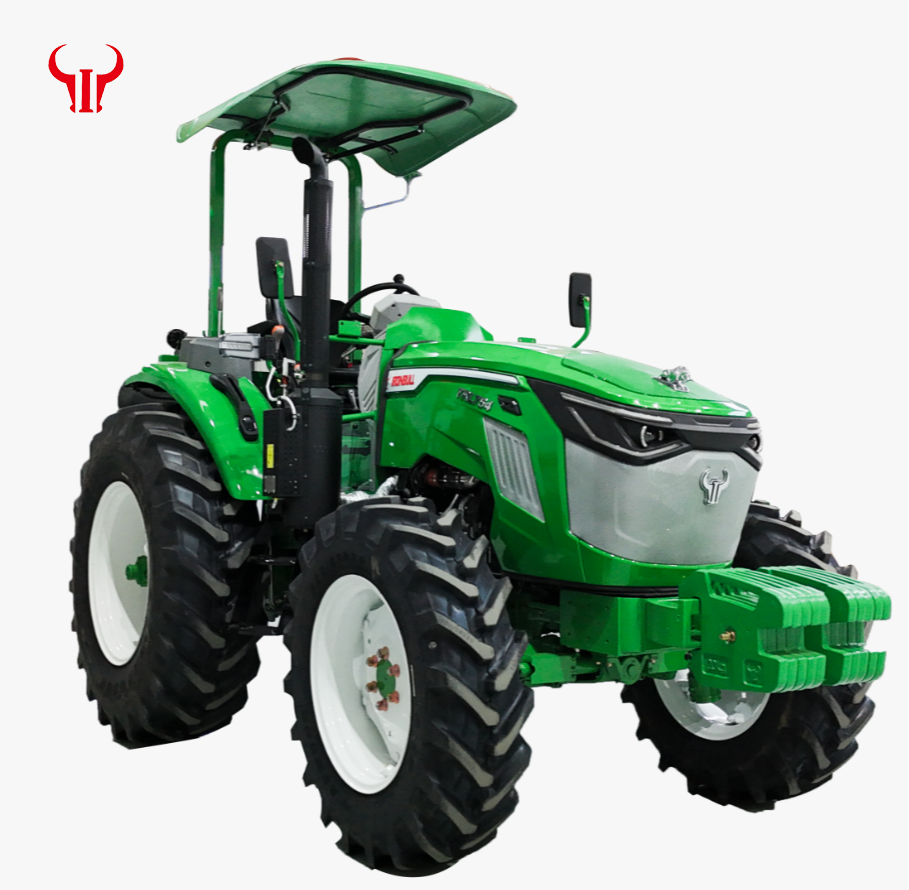

In response to the growing trends toward enhanced operator comfort and increasing operational intensity in farming, we have developed a 75-horsepower tractor. This tractor is powered by a high-quality diesel engine manufactured by Yuchai and features axles from the GADT brand. Its transmission system utilizes a helical gear design, thereby further extending the overall service life of the vehicle. The tractor is equipped with an air-conditioned cab and a rear-view camera system. Inside the cab, an air-suspension seat is installed to comprehensively address the issue of driver fatigue.
Product Introduction
In response to the growing trends toward enhanced operator comfort and increasing operational intensity in farming, we have developed a 75-horsepower tractor. This tractor is powered by a high-quality diesel engine manufactured by Yuchai and features axles from the GADT brand. Its transmission system utilizes a helical gear design, thereby further extending the overall service life of the vehicle. The tractor is equipped with an air-conditioned cab and a rear-view camera system. Inside the cab, an air-suspension seat is installed to comprehensively address the issue of driver fatigue.
Technical Overview & Core Parameters
|
TRACTOR MODEL |
TRL704 |
TRL804 |
TRL904 |
TRL1004 |
|
HORSE POWER |
70 HP |
80 HP |
90 HP |
100 HP |
|
WHEEL DRIVE |
4X4 |
|||
|
ENGINE BRAND |
YUCHAI/YTO/QUANCHAI |
|||
|
ROPS |
ROLL BAR AND ROOF/AIR CONDITION CABIN |
|||
|
DIMENSION |
4180X1950x2950 mm |
|||
|
GROUND CLEARANCE |
420 MM |
|||
|
WEIGHT |
3500 KGS |
|||
|
WHEEL TREAD |
1300/1400/1450 MM |
|||
|
WHEEL BASE |
2080 MM |
|||
|
GEAR SHIFT |
12F+12R |
|||
|
THREE POINT SUSPENSION |
Ⅱ CATEGORY |
|||
|
TIRE |
9.5-24/14.9-30 INCH, 12.4-24/18.4-30 INCH, 320/85R24-460/85R30 RADIAL TIRE |
|||
|
PTO |
6 SPLINES, 35 MM DIAMETER, 540/1000 RPM |
|||
|
FUEL TANK CAPACITY |
90 Liters |
|||
|
TRAIL DEVICE |
U Type Tow Bar + Swing Tow Bar |
|||
Technical Overview & Core Parameters
This tractor has many gears 12F+12R shuttle shift, each corresponding to a different driving speed and traction for using.

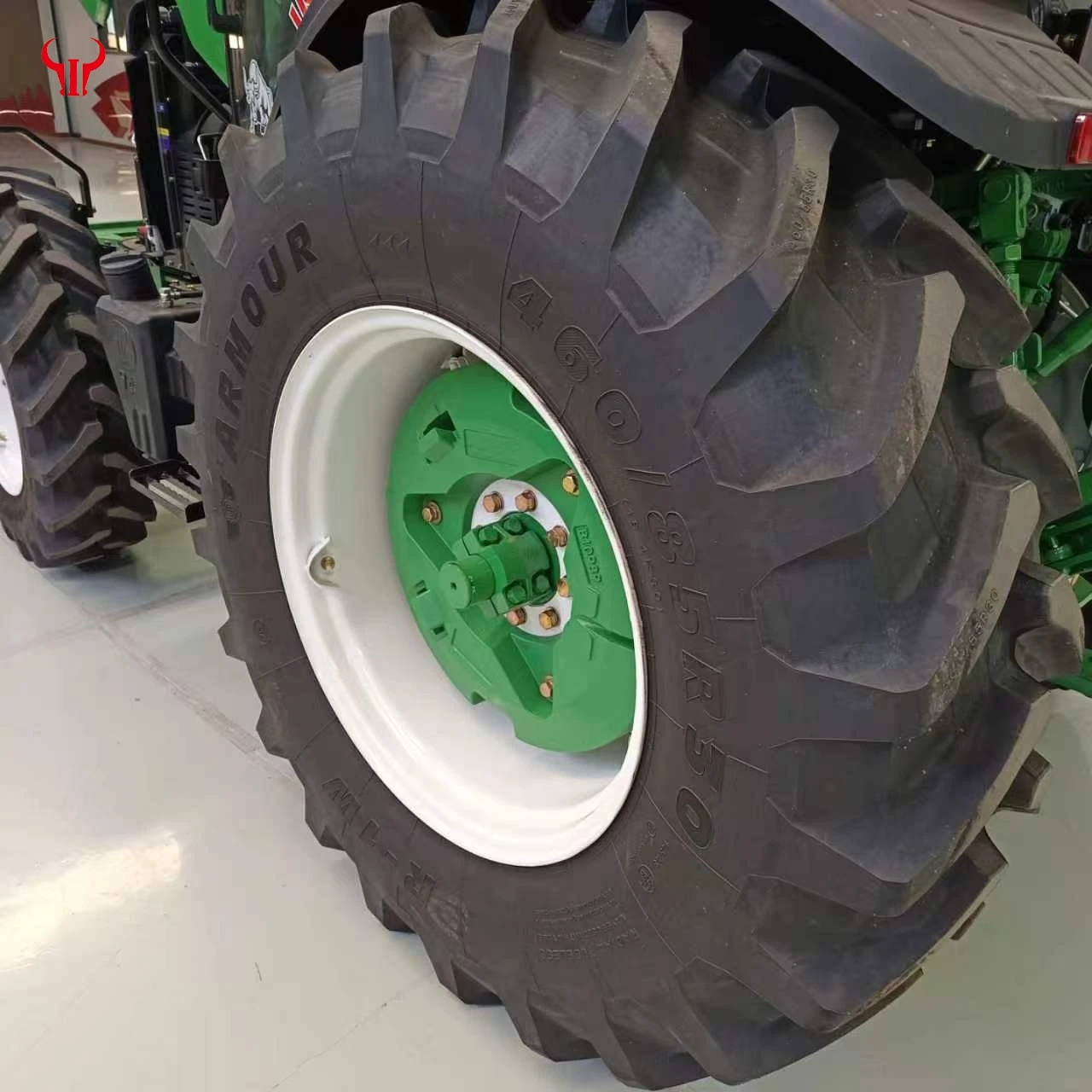

320/85R24-460/85R30 radial tire increase ground contact area, improving friction and traction.
Install second-class reinforced suspension and can be connected to medium-sized agricultural machinery.
